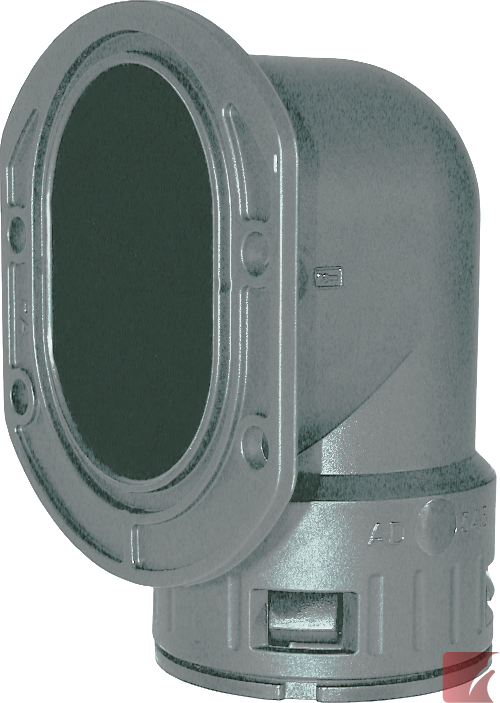

FLEXAquick® 90° Grey flange elbow connector, for 28.5 mm OD conduit, made of polyamide

IP 68 sealing level. Includes a flange sealing ring made of TPE rubber.

-40ºC to +115ºC

Material:

• plastic PA 6 polyamide

Properties:

• resistant oils and benzene
• widely resistant to acids and solvents
• free of silicone, cadmium, halogen
• flame resistant
• self-extinguishing, in case of fire
• heavy duty & impact resistant

Excellent for mounting to control panels and applications in tight areas.

Innovative feature:

• Quick "on" assembly, Quick "off" disassembly via a built-in release clip

Use with ROHRflex® corrugated conduits.
