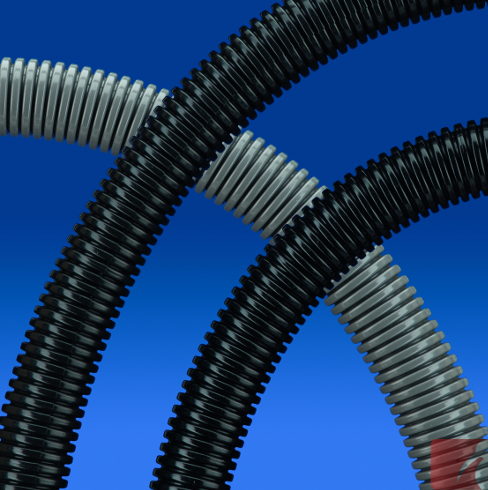

ROHRflex® PA6-L Grey Coarse Profile Corrugated Conduit
0261.231.023
Description
OD 28.5 mm - ROHRflex® - PA 6 Grey Polyamide all plastic standard-walled, coarse profile tubing. Corrugated internally & externally
HB [UL94]
-25ºC to +105ºC ... short term to +120ºC
Properties:
- air and liquid-tight
- oil resistant against up to + 80ºC
- benzene resistant
- widely resistant to acids, solvents and cutting fluids
- free of silicone, cadmium, halogen
- flame retardant
- black version conduits are UV resistant and stabilized
Applications:
- Excellent for general machine, automation and plant wiring
- Use with the broad range of FLEXAquick® fittings and accessories
Specifications
Conduit Profile:
Coarse
Conduit Type:
Regular
Color:
Grey
Weight:
0.09 kg
Package quantity:
50 metres
Dimensions:
Conduit OD:
28.5 mm
Conduit ID:
22.0 mm
Static Bend Radius:
55 mm
Dynamic Bend Radius:
100 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05




Alternate SKU Numbers
0261-231-023 | 0261231023 | 0261 231 023 | 0261_231_023 | 0261/231/023 | 0261,231,023 | 0261+231+023
