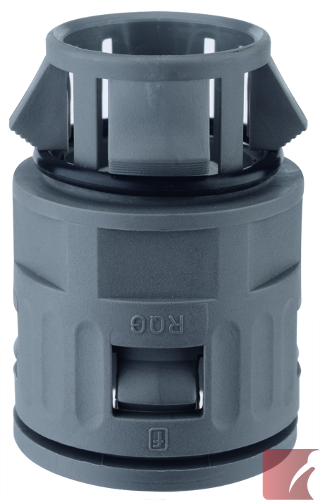

RQG1-S 16 mm Grey Push Lock Straight Connector
5020.082.016
Description
PG 16 push lock FLEXAquick® Grey straight connector, for 21.2 mm OD conduit, made of polyamide
Use with a 22.0 mm knockout hole size.
IP 66 sealing level
-40ºC to +115ºC
- no locknut required
- for wall thicknesses from 1 to 2.5 mm
- O-ring included
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
PG 16
Sealing Level:
IP66
Colour:
Grey
Weight:
0.0124 kg
Package quantity:
50
Dimensions:
φ I:
18.00
φ B:
29.50
C:
13.80
D:
45.30
Conduit OD:
21.2 mm
Datasheet
Certifications
CSA 22.2
# 227.3-05
