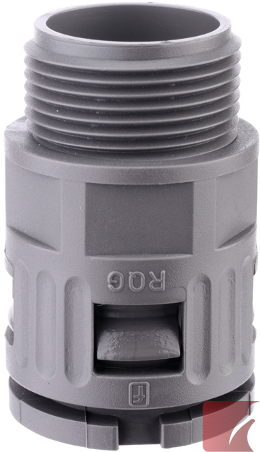

RQG-P PG Grey Straight Connector
5020.027.005

Description


PG 13.5 FLEXAquick® Grey straight connector, for 10.0 mm OD conduit, outer thread

IP 68 / IP 69K sealing level

-40ºC to +115ºC

Material:

  • plastic PA 6 polyamide
  • VO acc. to UL94

Properties:

  • resistant oils and benzene
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • Quick assembly

Use with ROHRflex® corrugated conduits

Specifications

Connector Thread:
PG 13.5
Sealing Level:
IP68
Colour:
Grey
Weight:
0.0045 kg
Package quantity:
25

Dimensions:
φ I:
7.00
φ B:
23.00
C:
10.00
D:
32.50
Conduit OD:
10.0 mm

Datasheet

Certifications

CSA 22.2
CSA 22.2
# 227.3-05
EN 45545-2 HL2 for R22 / R 23
45545-2
HL2 Rated
NFF 16-
101/102 I3
