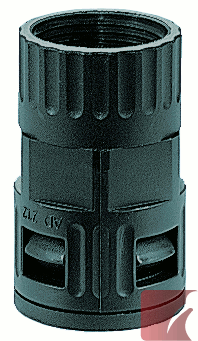

RQG2-M Metric Female Connector
5020.078.225
Description
M25 x 1.5 mm FLEXAquick® straight female connector, for 28.5 mm OD conduit, inner thread, made of polyamide
IP 68 / IP 69K sealing level
-40ºC to +115ºC
Material:
- made of PA 6 polyamide plastic
Properties:
- resistant oils and benzene
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- Quick assembly
Use with ROHRflex® corrugated conduits
Specifications
Connector Thread:
M25 x 1.5 mm
Sealing Level:
IP68
Colour:
Black
Weight:
0.014 kg
Package quantity:
25
Dimensions:
φ I:
17.00
φ B:
37.00
C:
13.50
D:
54.00
Conduit OD:
28.5 mm
Datasheet
Certifications

CSA 22.2
# 227.3-05



45545-2
HL2 Rated

NFF 16-
101/102 I3
