PG 16 straight connector for 21.0 mm OD conduit, outer thread, made of nickel plated brass

IP 54 sealing level

-40ºC to +125ºC

Use with the following conduits:

• AIRflex®-KUW-PVC-AS, AIRflex®-KUW-PU-AS, AIRflex®-GRS, AIRflex®-K

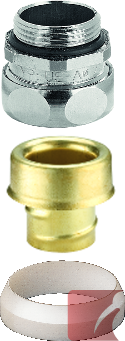

Construction

• Body and compression nut: nickel plated brass
• Sealing ring: TPE or PTFE
• Thrust collar: brass
• Ferrule: brass or plastic
• Outer "O" sealing ring: NBR perbunan rubber and comes pre-mounted with the fitting

Properties

• watertight and dustproof
• highly secure compression style mounting of connector to the conduit
• grounding / bonding supported
• good vibration and tension tolerance
